Good Thermal Conductive 9.0W Silicone Thermal Gel Silicone Putty Thermal Gap Filler for Telecon industry

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF090-11

Payment & Shipping Terms:

Minimum Order Quantity:	1000tube
Price:	0.1-100USD/KG
Packaging Details:	300cc/PCS，6PCS/Box
Delivery Time:	3-8 WORK DAYS
Payment Terms:	T/T
Supply Ability:	10000KG/MONTH

Contact Now

Detailed Product Description

Products Name:	Good Thermal Conductive 9.0W Silicone Thermal Gel Silicone Putty Thermal Gap Filler For Telecon Industry	Application:	Electronic Components
Color:	Gray	Materail:	Ceramic Filled Silicon Material
Continuous Use Temp:	-45-200 ℃	Thermal Conductivity:	9.0W/m-K
Keyword:	Silicone Thermal Gel	Specific Gravity:	3.45 G/cc
Highlight:	Good Thermal Conductive Silicone Thermal Gel , Silicone Putty Thermal Gap Filler , 9.0W Silicone Thermal Gel

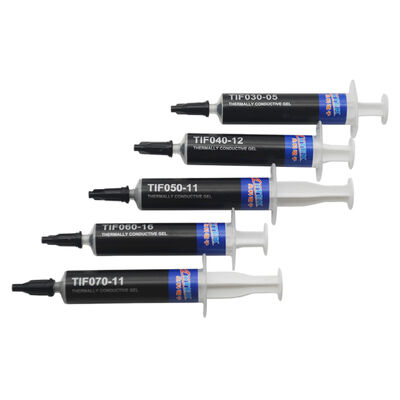

Good Thermal Conductive 9.0W Silicone Thermal Gel Silicone Putty Thermal Gap Filler for Telecon industry

TIF^®090-11 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, TIFo90-11 has a higher viscosity, which effectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment. Typical applications include flip-chip microprocessors, PPGAs, micro BGA packages, BGA packages, DSP chips, circular silicon chips, LED lighting, and other high-power electronic components.

Feature

> Thermal conductivity: 9.0W/mK

> Soft, very low compression

> Low thermal inpedance

> Operate automaticly
> Proven long-term reliability

Application

> Heat-sink & frame
> LED backlight module,LED lighting

> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controler

> Telecom industry
> Semiconductor automatic laboratory equipment

TIF^®090-11 Typical Property
Property	Value	Test method
Color	Gray	Visual
Construction & Composition	Ceramic filled silicon material	*****
Flow Rate(g/min)	20	Ziitek Test Methbod (30cc syringe/ 2.5mm or rifice/90 psi)
Density(g/cm³)	3.45	ASTM D792
Thermal conductivity(W/mK)	9.0	ASTM D5470
Thermal resistance @10Psi(℃-in²/W)	0.089	ASTM D5470
Thermal resistance @50Psi(℃-in²/W)	0.055	ASTM D5470
Recommended Operating temp	-45~200℃	*****
Breakdown Voltage(V/mm)	≥4000	ASTM D149
Bond line Thickness (mm)	0.4	Ziitek Test Method
Shelf life	12 months	****
Flame Rating	V-0	UL 94

Packing details

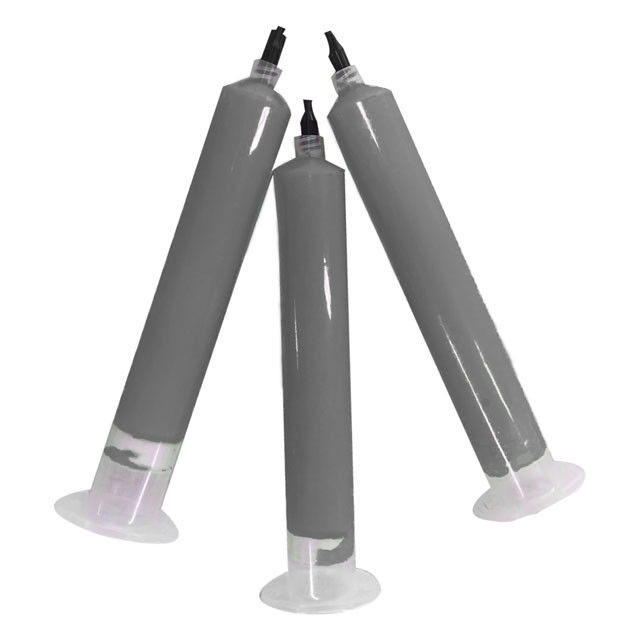

30 cc/pc, 98 pc/box;

300 cc/pc , 6 pc/box

We offer the custom packaged in syringes for automated despensing applications.

Please contact us for confirming.

Company Profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Q&A

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
