Wholesale Thermally Conductive Putty For CPU GPU

Wholesale Thermally Conductive Putty For CPU GPU

  • Wholesale Thermally Conductive Putty For CPU GPU
  • Wholesale Thermally Conductive Putty For CPU GPU
Wholesale Thermally Conductive Putty For CPU GPU
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF015AB-07S Thermally Conductive Putty
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Wholesale Thermally Conductive Putty For CPU GPU Thermal Conductivity: 1.5W/mk
Hardness: 45 Shore 00 Color A/B: White / Green
Flame Rating: 94V0 Keyword: Thermally Conductive Putty
High Light:

Wholesale Thermally Conductive Putty


CPU GPU Thermally Conductive Putty

Wholesale Thermally Conductive Putty For CPU GPU


Company Profile


Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.




Wholesale Thermally Conductive Putty For CPU GPU 0


Ziitek TIF015AB-07S is a highly thermal conductive, liquid gap filling material. It is provide with two-component and different temperature curing system. The product was supplied as highly thermal conductive, soft and elastomer for coupling on electrical devices modul. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components. It is liquid approach offer variety of thickness, replacing individual die-cut and specific pad thickness. Different from grease, the cured product is dry and can be touch. It can intented for use in thermal applications.


< Good thermal conductive: 1.5W/mK
< UL recognized
< Naturally tacky needing no further adhesive coating
< Two-part formulation for easy storage
< High durability
< Optimized shear thinning characteristics for ease of dispensing



< Notebook
< Set top boxes
< Monitoring the Power Box
< High speed mass storage drives
< Heat sink any heat generating semiconductor



Typical Properties of TIF015AB-07S Series
Typical Uncured Material
Property Numerical Test Method
Color/Part A White Visual
Color/Part B green Visual
Viscosity as Mixed (cps) 400,000 cps GB/T 10247
Density 2.3g/cc ASTM D792
Mix Ratio 1:01 ******
Shelf Life@25℃ 6 months ******
Cure Schedule
Pot Life @25℃ 30min ******
Cure @25℃ 60min ******
Cure @100℃ 30min Visual
Cure Properties
Color Green Visual
Hardness 45 shore00 ASTM D2240
Continuous Use Temp ﹣45~200℃ ******
Voltage Strength 200 V/mil ASTM D149
Dielectric Constant 4.2MHz ASTM D150
Volume Resistivity 1012 Ohm-meter ASTM D257
Flame Rating 94V0 E331100
Thermal Conductivity 1.5W/Mk ISO22007-2
Specific Heat Capacity 2.0MJ/m3K ISO22007-2




Wholesale Thermally Conductive Putty For CPU GPU 1



Product packing details:

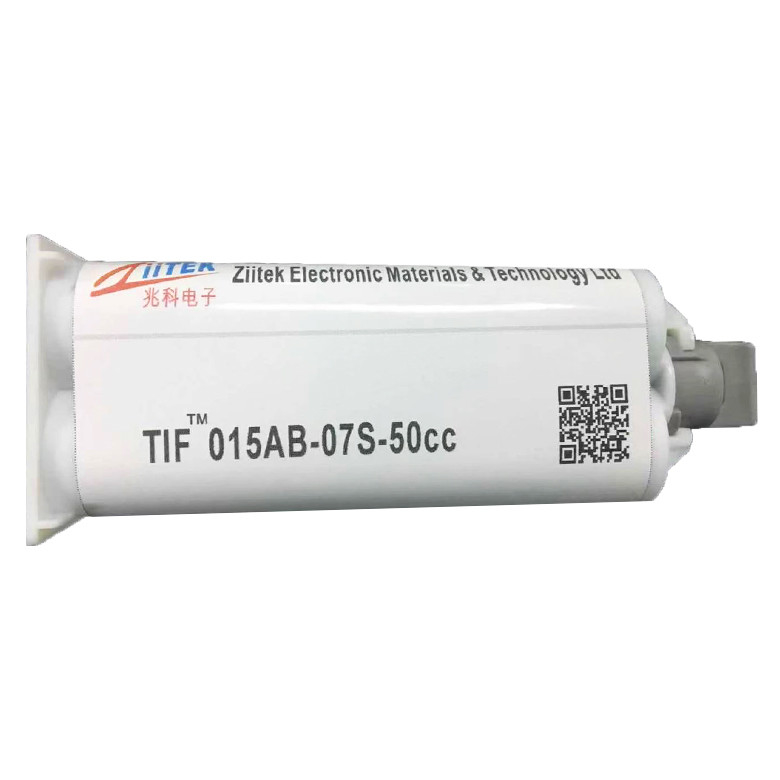

50cc/pc, 48pcs/box; 400cc/pc, 9pcs/box
We offer the custom packaged in Syringes for automated despensing applications. Please contact us for confirming.
