Name: 5W/mK Violet Soft Silicone Thermally Conductive Putty Thermal Conductive Gel For LED Lights
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF050-11
Price: 49.10 USD
Availability: InStock

Home Products Thermal Conductive Gel

5W/mK Violet Soft Silicone Thermally Conductive Putty Thermal Conductive Gel For LED Lights

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF050-11

Payment & Shipping Terms:

Minimum Order Quantity:	1000tube
Price:	0.1-100USD/KG
Packaging Details:	300cc/tube
Delivery Time:	3-8 WORK DAYS
Payment Terms:	T/T
Supply Ability:	10000KG/MONTH

Contact Now

Detailed Product Description

Name:	5W/mK Violet Soft Silicone Thermally Conductive Putty Thermal Congductive Gel For LED Lights	Shape:	Putty
Application:	DSP Chip, LED Light	Color:	Gray
Construction & Composition:	Ceramic Filled Silicon Material	Keyword:	Silicone Thermally Gel
Continuous Use Temp:	-45-200 ℃	Specific Gravity:	3.2g/cc
Highlight:	Thermal Conductive Gel For LED Lights , Soft Silicone Thermally Conductive Putty , 5W/mK Thermal Conductive Gel

5W/mK Violet Soft Silicone Thermally Conductive Putty Thermal congductive Gel For LED Lights

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Product introduction

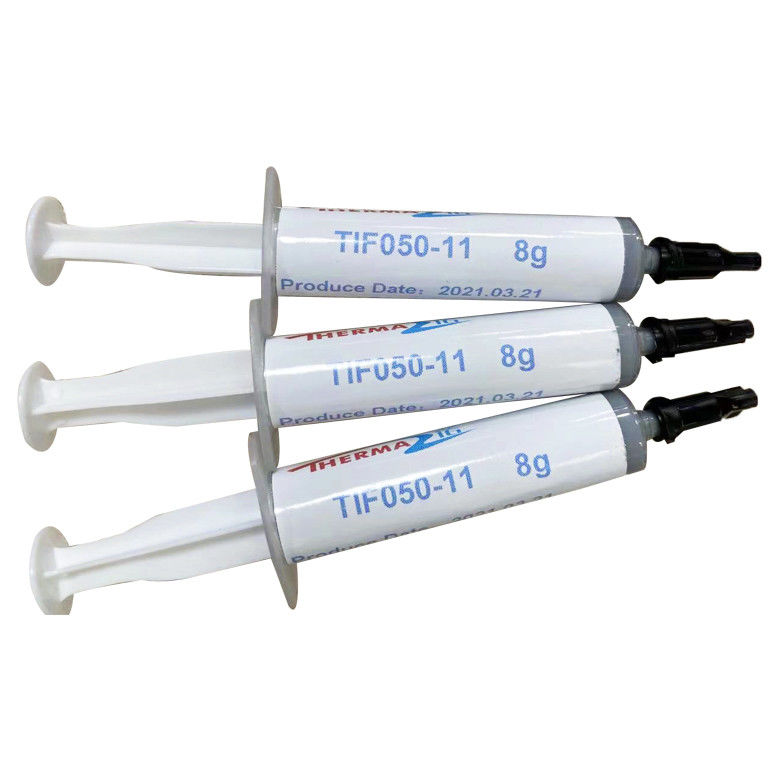

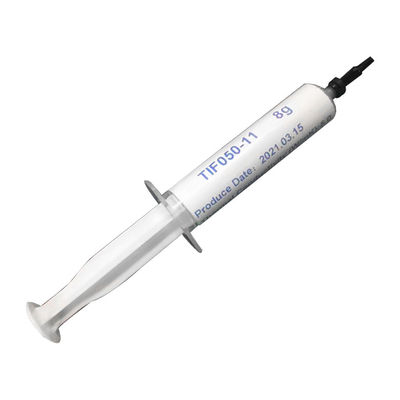

TIF ™050-11 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and compressibility.Due to TIF™050-11 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.

TIF™050-11 operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility.TIF™050-11 can be applied on chip micro processor,PPGAs,Micro BGA package,BGA package,DSP chip,LED lighting and other high power electric component .

TIF050-11 Series Datasheet-REV02.pdf

Application

> Heat-sink & frame
> LED backlight module,LED lighting
> High speed hardware driver
> Micro heat pipe ,Vihicel enginee controler
> Telecom industry

> RDRAM memory modules

> Micro heat pipe thermal solutions
> Automotive engine control units

>Telecommunication hardware

> Handheld portable electronics

Feature

> Thermal conductivity: 5W/mK
> Soft, very low compression

> Low thermal inpedance
> Operate automaticly

TIF^TM050-11 Property
Color	Gray	Visual
Construction & Composition	Ceramic filled silicon material	**********
Viscosity	2000,000cps	GB/T 10247
Specific Gravity	3.2 g/cc	ASTM D297
Thermal conductivity	5.0 W/mK	ISO 22007-2
Thermal diffusivity	1.695 mm2/s	ISO 22007-2
Specific heat capacity	2.3 MJ/m³K	ISO 22007-2
Continuous Use Temperature	-45 ~200°C	******
Dielectric breakdown strength	200 V/mil	ASTM D149
Flame Rating	94V0	E331100
Outgassing,%TML	0.60%	ASTM E595

Packing detail:

30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box

We offer the custom packaged in syringes for automated despensing applications.

Please contact us for confirming.
