Name: High Thermal Conductive Two Component Thermal Gel For Computer And Peripherals
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF080 AB-11S
Price: 4.10 USD
Availability: InStock

Home Products Thermal Conductive Gel

High Thermal Conductive Two Component Thermal Gel For Computer And Peripherals

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF080 AB-11S

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	251312cm carton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Name:	High Thermal Conductive Two Component Thermal Gel For Computer And Peripherals	Thermal Conductivity:	8.0W/mk
Hardness:	45 Shore 00	Color A/B:	White / Gray
Flame Rating:	94V0	Keyword:	Thermally Conductive Gel
Application:	Computer And Peripherals	Suggested Temp Range:	-45~200℃
Highlight:	Peripherals Thermal Conductive Gel , High Thermal Conductive Thermal Gel , Computer Thermal Conductive Gel

High Thermal Conductive Two Component Thermal Gel For Computer And Peripherals

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

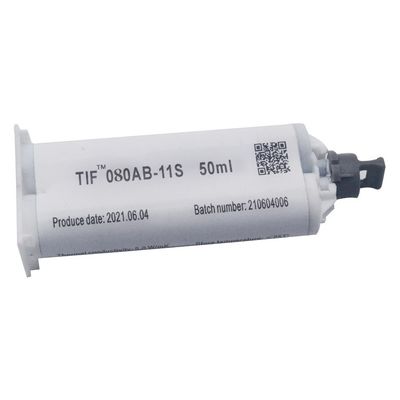

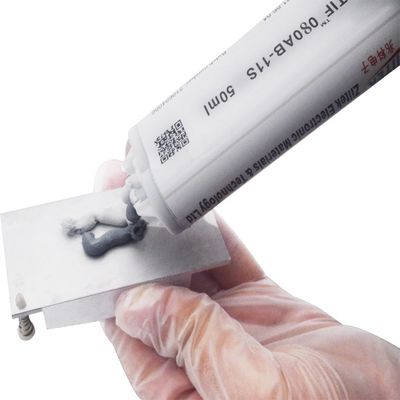

Ziitek TIF^®080 AB-11S is a highly thermal conductive, liquid gap filling material. It is provide with two-component and different temperature curing system. The product was supplied as highly thermal conductive, soft and elastomer for coupling on electrical devices modul. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components. It is liquid approach offer variety of thickness, replacing individual die-cut and specific pad thickness. Different from grease, the cured product is dry and can be touch. It can intented for use in thermal applications.

Features

< Good thermal conductive: 8.0W/mK

< Two-part formulation for easy storage

< Excellent low and high temperature mechanical and chemical stability

< Ultra-conforming low-stress interface application

< Ambient or accelerated cure schedules

< Optimized shear thinning characteristics for ease of dispensing

Applications

< Computer and peripherals

< Telecommunications
< Automotive electronics
< Thermally conductive vibrationdampening
< Heat sink and any heatgenerating semicondutor

Typical Properties of TIF^®080 AB-11S Series
Typical Uncured Material
Property	Numerical	Test Method
Color/Part A	White	Visual
Color/Part B	Gray	Visual
Fiow Rate (g/min) @75psi	4.5	******
Density	3.4g/cm³	ASTM D792
Bond line thickness(mm)	0.2	ASTM D374
Mix Ratio	1:1	******
Shelf Life@25℃	6 months	******
Cure Schedule
Pot Life @25℃	30 min	******
Cure @25℃	120 min	******
Cure @100℃	30 min	******
Cure Properties
Color	Gray	Visual
Hardness	45 shore00	ASTM D2240
Continuous Use Temp	-45~200℃	******
Voltage Strength	≥4000 V/mm	ASTM D149
Volume Resistivity	＞1.0*10¹² Ohm-meter	ASTM D257
Flame Rating	V-0	UL 94
Thermal Conductivity	8.0W/mK	ASTM D5470
Thermal impedance@10psi (℃-in²/W)	0.72	ASTM D5470
Thermal impedance@50psi (℃-in²/W)	0.60	ASTM D5470

Product packing details:

50cc/pc, 48pcs/box; 400cc/pc, 9pcs/box
We offer the custom packaged in Syringes for automated despensing applications. Please contact us for confirming.

High Thermal Conductive Two Component Thermal Gel For Computer And Peripherals 0

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
